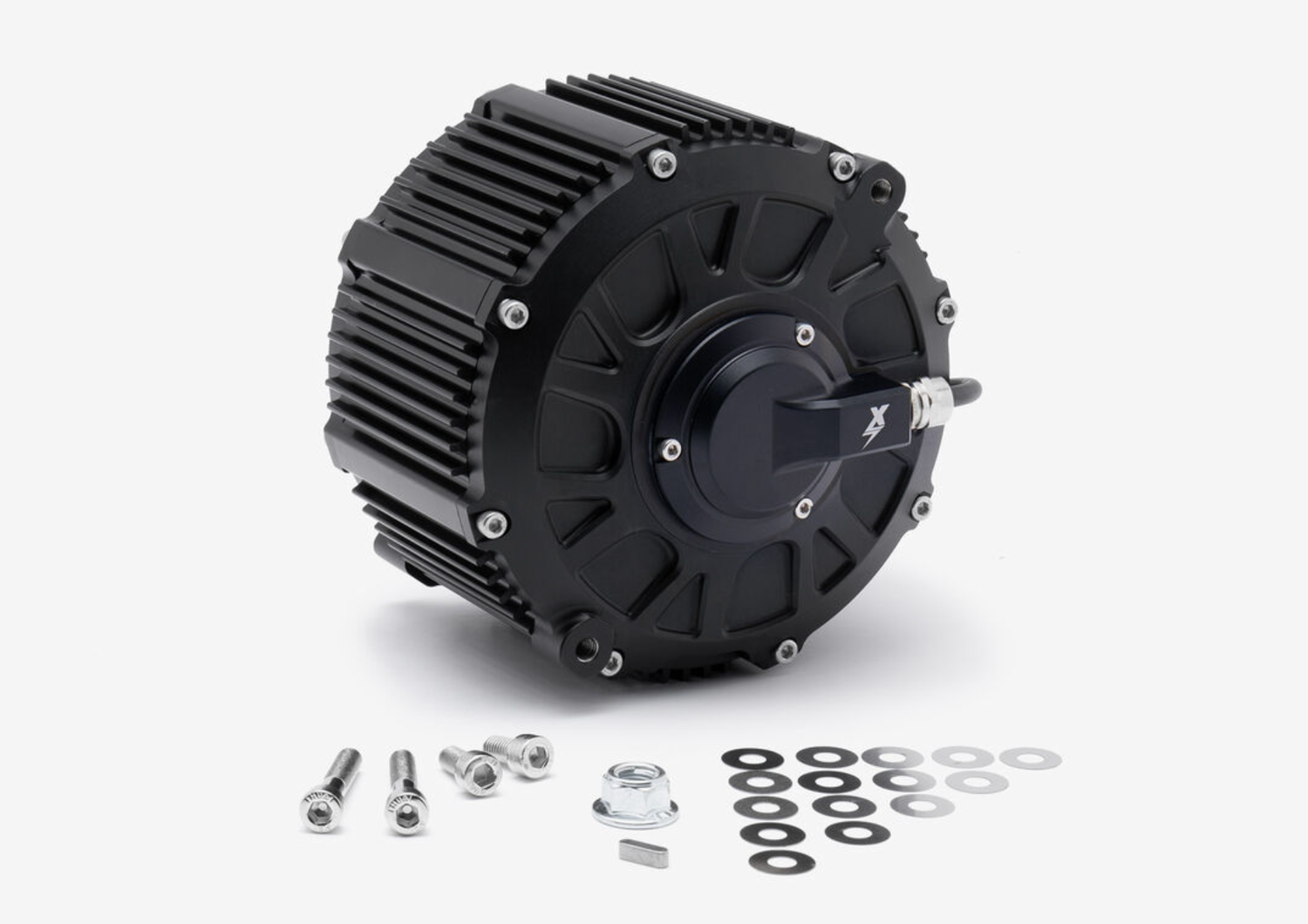

EBMX XLB-60 V2 Race SurRon Light Bee Motor

Name: EBMX XLB-60 V2 Race SurRon Light Bee Motor
SKU: 30954
Price: 1895.0 EUR
Availability: InStock

EBMX Xtreme Electric Mods combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor.

The XLB-60 V2 Race Motor has been purpose built with dirt bike riders in mind.

Another great EV Motor

The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes. The XLB-60 RACE edition, designed for speed and maximum RPM, this is the fastest motor on the market!

Using our EBMX rotor design we have lengthened the torque band to create a constant pulling force from 0 to 13000RPM. The XLB60 RACE is aimed at the racer, from MX to trail or even the drag strip, designed to handle the heat and bring insane levels of RPM.

The EBMX motors have been custom built and are finely tuned to work with the EBMX X-9000 controller.

Harness and mount sets are available to use this motor with SurRon Light Bee or Eride Pro.

The motor has a larger stator than its little brother the XLB-60 going up from 60 to 65mm and a screaming 105kv wind.

More Power, More Speed, More Fun, More Savage!

Recommend X9000 Settings on a 400Amp BMS 20S22S

1000 Phase / 30KW

900 Phase / 25KW

800 Phase / 20KW

MTR028 Description EBMX XLB-60 Version 2 Race Motor Black

The motor in an electric vehicle (EV) is the component that converts electrical energy from the battery into mechanical energy to drive the vehicle. It provides propulsion by generating torque, which turns the rear wheel.

DETAILS

35KW rated and tested, designed from the ground up to handle the heat, 180C rated windings with U42H magnets

Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 13000RPM. Encoder based motor control for increased low end torque response and smooth predicable power delivery.

Encoder sensors, on the other hand, are capable of tracking motor position at all speeds and do so more frequently than hall sensors. As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues. Furthermore, they contribute to improved low-end torque control and overall motor response.

EBMX motor have been custom built and are finely tuned to work with the EBMX X-9000 controller. These motors will work with many other types of controllers, however they may require you to do your own custom tuning.

IN CONTRAST TO MANY OF OUR COMPETITORS WHO UTILISE HALL SENSORS WE HAVE OPTED TO INCORPORATE ENCODER SENSORS IN OUR MOTORS THIS DECISION STEMS FROM THE FACT THAT ENCODER SENSORS DEMONSTRATE GREATER STABILITY UNDER DEMANDING RIDING CONDITIONS WHILE HALL SENSORS RELY ON ESTIMATED ROTOR POSITIONS ENCODER SENSORS CONSISTENTLY PROVIDE PRECISE ANGLE MEASUREMENTS OF THE ROTORS POSITION HALL SENSORS ARE TYPICALLY EMPLOYED FOR TRACKING MOTOR POSITION DURING STARTUP AND UP TO APPROXIMATELY 2000 RPM AFTER WHICH THE MOTOR OPERATES IN A SENSORLESS MANNER HOWEVER DURING INTENSE RIDING SITUATIONS SUCH AS WHEEL SPINNING AND SUDDEN DECELERATION COMBINED WITH RAPID THROTTLE ADJUSTMENTS HALL SENSORS ANGLE DETECTION CAN RESULT IN SUBSTANTIAL CURRENT SPIKES IN THE CONTROLLER THIS CAN POSE SIGNIFICANT ISSUES FOR MANY CONTROLLERS LEADING TO TRIPPING AND LOSS OF THROTTLE POWER ALTHOUGH THIS IS LESS PREVALENT IN THE X9000

A custom EBMX Bash Plate is included with your motor.

Note

Our new motors have been engineered for performance enthusiasts and experienced riders in controlled environments. These motors are significantly faster than standard motors, and their extreme speed can pose serious risks if not handled with caution.

IMPORTANT SAFETY CONSIDERATIONS:

NOT INTENDED FOR ROAD USE: EBMX Motors are NOT designed for use on public roads or crowded areas. These motors are strictly meant for off-road use and controlled environments only.

EXPERIENCED RIDERS ONLY: These high-performance motors are recommended for experienced riders who possess the necessary skills and expertise to handle powerful machines. Novice riders are strongly advised against using our motors.

USE WITH CAUTION: The enhanced speed and power of our motors require extreme care and attentiveness. Always exercise caution and be aware of your surroundings when operating our products.

UPGRADE SAFETY EQUIPMENT: It is crucial to ensure that your bike is equipped with upgraded brakes and other safety features capable of handling the increased speed and power provided by our motors. Using the motor with stock brakes or inadequate safety measures may result in accidents and severe injuries.

ADHERE TO LOCAL LAWS: Familiarize yourself with local regulations and laws pertaining to off-road vehicle usage in your area. Always ride within designated areas and private tracks that allow for safe operation.

KEEP AWAY FROM CHILDREN: Our motors are not toys, and they must be kept out of reach of children. Never allow minors or inexperienced individuals to operate these motors.

RIDE RESPONSIBLY: Ensure that you are in a sound state of mind and not under the influence of any substances that could impair your judgment before operating the motor.

By purchasing and using EBMX Motors products, you acknowledge and understand the inherent risks associated with high-speed off-road motor use. EBMX or E-BIKES BORNEM shall not be liable for any injuries, accidents, damages, or losses incurred as a result of improper usage, negligence, or failure to adhere to this disclaimer.

Enjoy the thrill of our motors responsibly and with safety as your utmost priority.

*Price is for self-installation, an additional cost will be charged if the motor has to be installed by us.

XLB-60 Motor (Light Bee) Specifications
PEAK POWER	35000W
VOLTAGE RANCE	48v – 104v
MAX TORQUE	52Nm
MAX STABLE ROTOR RPM	13000RPM
MAX EFFICIENCY	93%
MOTOR CONFIGURATION	10 poles and 12 slots
WINDING TYPE	Dual Y parallel connection
STATOR AND ROTOR STACK THICKNESS	60MM
SENSING METHOD	NJDC 605 Encoder
KV Value	95KV
Rated power	Air cooled:
	13,600W(Continuous run for 28 mins)
	24,000W(Continuous run for 2 min 20seconds)
	Water cooled:
	26,000W(4:30S)
Warranty	2 Year
Max Phase current	900A
Rated Phase current (Continuous run)	500A (28Nm)
Motor temperature	180 deg C windings
	140 deg C start limiting
	160 deg C power cut
Waterproofing	IP67
Anti-corrosion	Yes
Colors	Black with Black End Cap
	Black with Red End Cap
	Black with Blue End Cap
	Black with Gold End Cap
	Black with Purple End Cap
Weight/Size	Air cooled:
	OD181.5mm*L118mm 10.5KG
	Water cooled:
	OD187mm*L118mm 12.5KG
